High-Strength expanded metal mesh for ceilings and walls.
Fortress Mesh is a steel mesh typically installed onto both metal and wood studs, with gypsum sheathing applied to its surface to conceal the barrier mesh. This provides a significant protection to security breach across the wall
system. Central Expanded Metal's Fortress Mesh (FM) can also be used alone to provide increased protection to walls, ceilings, and floors. Fortress Mesh is produced in different diamonds openings and thicknesses for
minimum, medium, or maximum-security protection.
Fortress Mesh also offers a cost effective and time-saving alternative to reinforced concrete. The Fortress Mesh System can be attached to stud framing, with specially designed Fortress Mesh clips, purchased with
the Fortress Mesh as a system. Central Expanded Metal's mesh sheets can be made for stock size sheets or custom sizes.
Fortress Mesh can be used in a variety of projects such as:
military facilities, jails or prisons, government offices, retail stores, computer rooms, airports, or any space requiring enhanced barrier protection.
2.5" x 1.4" high-strength steel clips used to attach Fortress Mesh to studs. 300pcs. per box

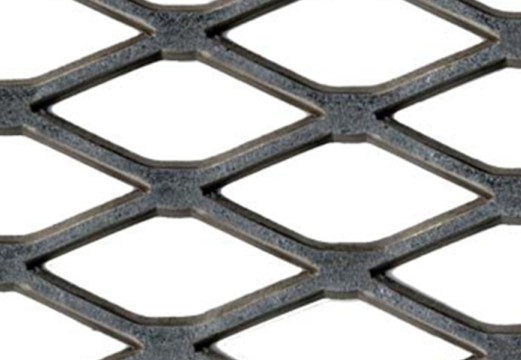

075F - Fortress Mesh
- - Helps protect against break-ins and break-outs.
- - Cost effective alternative over concrete or concrete block
- - High-strength and fire-resistant.
- - Manufactured from carbon steel.
Measurements in Inches & Nominal Weight in lbs/100-sq. ft.
| Product ID |
Gauge |
Overall Thickness |
Design Size SWD |
Design Size LWD |
Nominal Weight |
% Open Area |
| 3/4F16 |
16 |
0.048 |
0.923 |
2.10 |
47 |
74 |
| 3/4F13 |
13 |
0.070 |
0.923 |
2.10 |
67 |
74 |
| 3/4F9 |
9 |
.100 |
0.923 |
2.10 |
157 |
63 |
*Thickness and weight can vary depending on raw material available at time of order.
